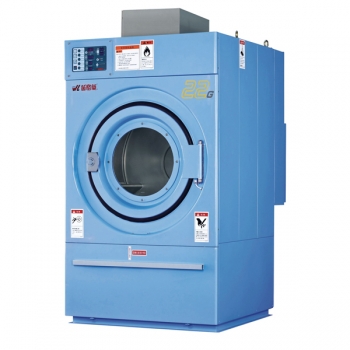

ENA-22G
Multi-function Dry and Safety
  • Clockwise and counterclockwise rotation of the internal tub is computer controlled.This is combined with a frequency inverter control, providing 6-step speed of internal tub to reduce tangle of dry clothes.
  • A humidity sensor is applied to monitor the dry condition and prevent clothes from shrinking.
  • Equipped with 2 types if drying and cooling timers, allowing the machine to perform 2-step drying and cooling motions according to clothes types.
  • Incase abnormal temperature occurs, a buzzer will sound for safety protection.
  • The door is equipped with a safety switch.This prevents operator from damage caused by door opening when the machine is running .
  • Allows for 2-step processing.
Excellent Durability and Quietness
The steel plate of external housing is paint-baked and anti-rust treated. The internal barrel is manufactured from stainless steel with special structure design, featuring excellent durability. The machine exhibits significantly lower noise than competitive models.
Outstanding Operational Performance
The entire structure height is designed to meet ergonomics for convenient operation. Once you place clothes into the machine, simply select your desired drying mode and start the computer, then the machine will perform fully automatic operation.
Extra Large Capacity High Efficiency Drying
The over-sized internal barrel is suitable for drying lots of clothes. The interior of the machine is designed with turbulent type convention port, which is combined with the use of 4 agitating rods for ventilation and fast drying of clothes.
    Mode                   ENA-22G
Loading(kg) 22kg Total capacity 1.15kw
Drum Diameter(mm) 900mm Gas tube 1/2〞
Depth(mm) 800mm Fuel gas type-liquid gas Liquefied gas
Capacity(Liter) 508L Consumption of fuel gas 1.45kg/h
R.P.M 38 rpm Duct pipe ø200mm
Punch hole ø6mm Power supply 3ph 220V/380V 50/60Hz
Air flow 25cm3/min Distributed electricity 2.0mm2/2.0mm2
Door dimension Front ø560mm Maximum current 6A/4A
Rear * Breaker 15A/15A
Controlled by CS-168 Dimension 1020Wx1290Dx1955H
Motors Drum motor 0.4kw × 6P Net weight 460kg
Blower 0.75kw × 4P
