Washing Machine Series

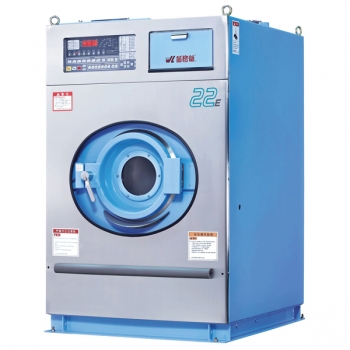

WEI-22E
Prevents Clothes from Tangling
The rotation numbers, clockwise and counterclockwise rotation time, stop time of internal barrel and water-based exhaust can be set through washing programs. With the optimal washing programs according to clothes type, you get increased washing capability and minimum clothes tangling.
Outstanding Performance of Computer WL-568
  • The temperature specified function permits ratio setting between warm water and cold water.
  • Allows for setting drum rotation time and stop time.The machine also has automatic soaking subscription and power off functions.
  • Featuring soft washing and over-washing functions.
  • Signal advise and automatic trouble detection.
  • The computer permits setting of 30 pragrams. Each program includes 14 jobs to suit various types of clothes.
No Air Compressor Required
This machine employs spring loaded shock absorber combined with electric actuated large port water supply valve and exhaust valve.
Easier and More Simple Operation Design (Temporary Edit)
The machine allows operator to see programs and running condition simultaneously.The operator can individually run a single stroke without need to change program memory.
    Mode                   WEI-22E
Loading(kg) 22kg Pipe diameters Cold water 1 1/4〞
Drum Diameter(mm) 800mm Warm water(Option) 1 1/4〞
Depth(mm) 550mm Steam 1/2〞
Capacity(Liter) 276L Rear water drain 3〞
R.P.M Wash (rpm) 20.35.40.45.50 rpm Lower water drain *
Distribution(rpm) 63 rpm Exhaust pipe 2〞
Extract 150.420.590.720.830 rpm Air *
Door dimension ø415mm Suspension system 8 springs+shock absorbers
Controlled by WL-568 Tilt angle *
Motor capacity 3.7kw Power supply 3ph 220V/380V 50/60Hz
Required steam pressure 7.0 kg/cm2 Distributed electricity 5.5mm2/3.5mm2
Compressed air * Maximum current 16A/9A
Water supply 454L Breaker 40A/20A
Essential water pressure 1.0~2.8kg/cm2 Dimension 1110Wx1275Dx1805H
    Net weight 950kg
