Washing Machine Series

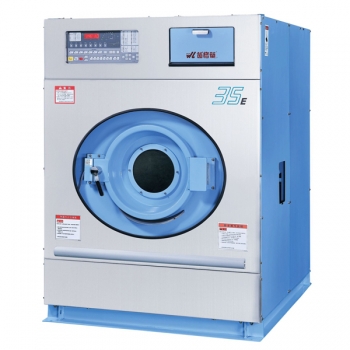

WEI-35E
Prevents Clothes from Tangling
The rotation numbers, clockwise and counterclockwise rotation time, stop time of internal barrel and water-based exhaust can be set through washing programs. With the optimal washing programs according to clothes type, you get increased washing capability and minimum clothes tangling.
Outstanding Performance of Computer WL-568
  • The temperature specified function permits ratio setting between warm water and cold water.
  • Allows for setting drum rotation time and stop time.The machine also has automatic soaking subscription and power off functions.
  • Featuring soft washing and over-washing functions.
  • Signal advise and automatic trouble detection.
  • The computer permits setting of 30 pragrams. Each program includes 14 jobs to suit various types of clothes.
Air Cushion Type Suspension System
With the use of balancing valve and shock absorber, washing and dehydration will achieve the optimal balance condition. Incase unbalance occurs, the machine will adjust balancing condition automatically, reducing vibration to a minimum.
Easier and More Simple Operation Design (Temporary Edit)
The machine allows operator to see programs and running condition simultaneously.The operator can individually run a single stroke without need to change program memory.
    Mode                   WEI-35E
Loading(kg) 35kg Pipe diameters Cold water 1 1/2〞
Drum Diameter(mm) 960mm Warm water(Option) 1 1/2〞
Depth(mm) 600mm Steam 3/4〞
Capacity(Liter) 434L Rear water drain 4〞
R.P.M Wash (rpm) 20.35.40.45.50 rpm Lower water drain *
Distribution(rpm) 57 rpm Exhaust pipe 2〞
Extract 150.380.540.660.760 rpm Air 3/8〞
Door dimension ø500mm Suspension system 3 set of cushions+shock absorbers
Controlled by WL-568 Tilt angle *
Motor capacity 7.5kw Power supply 3ph 220V/380V 50/60Hz
Required steam pressure 7.0 kg/cm2 Distributed electricity 8.0mm2/5.5mm2
Compressed air 7.0 kg/cm2 Maximum current 30A/16A
Water supply 798L Breaker 50A/30A
Essential water pressure 1.0~2.8kg/cm2 Dimension 1300Wx1615Dx1890H
    Net weight 1,450kg
