Washing Machine Series

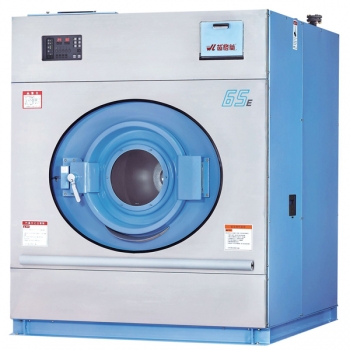

WEI-65E
Prevents Clothes from Tangling
The rotation numbers, clockwise and counterclockwise rotation time, stop time of internal barrel and water-based exhaust can be set through washing programs. With the optimal washing programs according to clothes type, you get increased washing capability and minimum clothes tangling.
The simple type computer WL-502 is easier to operate.
Signal advise and automatic trouble detection.
Easier and More Simple Operation Design (Temporary Edit)
The machine allows operator to see programs and running condition simultaneously.The operator can individually run a single stroke without need to change program memory.
Air Cushion Type Suspension System
With the use of balancing valve and shock absorber, washing and dehydration will achieve the optimal balance condition. Incase unbalance occurs, the machine will adjust balancing condition automatically, reducing vibration to a minimum.

    Mode                   WEI-65E
Loading(kg) 65kg Pipe diameters cold water 1 1/2〞
Drum Diameter(mm) 1,150mm Warm water(Option)) 1 1/2〞
Depth(mm) 750mm Steam 3/4〞
Capacity(Liter) 778L Rear water drain 4〞
R.P.M Wash (rpm) 20.40 rpm Lower water drain *
Distribution(rpm) 51 rpm Exhaust pipe 2〞
Extract 420.720 rpm Air 3/8〞
Door dimension ø607mm Suspension system 3 set of cushions+shock absorbers
Controlled by WL-502 Tilt angle *
Motor capacity 11.0kw Power supply 3ph 220V/380V 50/60Hz
Required steam pressure 7.0 kg/cm2 Distributed electricity 8.0mm2/5.5mm2
Compressed air 7.0 kg/cm2 Maximum current 33A/23A
Water supply 1,619L Breaker 50A/40A
Essential water pressure 1.0~2.8kg/cm2 Dimension 1600Wx2030Dx2000H
    Net weight 2,500kg
