Washing Machine Series

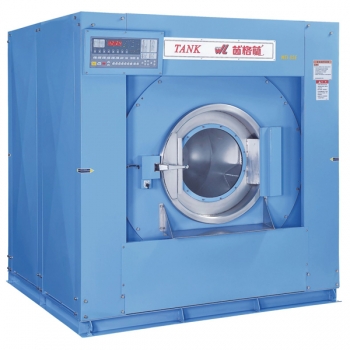

WEI-85E
Air Cushion Type Suspension System
During washing, the air cushion is in exhaust condition. This enables external barrel rest on the base, and the internal barrel will thoroughly agitate to ensure the best washing effect. During dehydrating, the air cushion is filled with air and the extemal barrel is in floating condition. The air cushion absorbs vibration completely. Incase unbalance occurs, the machine will adjust balancing condition automatically.
Outstanding Performance of Computer WL-568
  • The temperature specified function permits ratio setting between warm water and cold water.
  • Allows for setting drum rotation time and stop time.The machine also has automatic soaking subscription and power off functions.
  • Featuring soft washing and over-washing functions.
  • Signal advise and automatic trouble detection.
  • The computer permits setting of 30 pragrams. Each program includes 14 jobs to suit various types of clothes.
Easier and More Simple Operation Design (Temporary Edit)
The machine allows operator to see programs and running condition simultaneously.The operator can individually run a single stroke without need to change program memory.
Excellent Durability
The external barrel of the washing tank is a welding structure, machine service life is long.
    Mode                   WEI-85E
Loading(kg) 85kg Pipe diameters Cold water 2〞
Drum Diameter(mm) 1,305mm Warm water(Option) 2〞
Depth(mm) 750mm Steam 1〞
Capacity(Liter) 1,003L Rear water drain 4〞
R.P.M Wash (rpm) 20.30.35.40.45 rpm Lower water drain 6〞
Distribution(rpm) 51 rpm Exhaust pipe 2 1/2〞
Extract 150.300.420.550.660 rpm Air 3/8〞
Door dimension ø819mm Suspension system 3 set of cushions+shock absorbers
Controlled by WL-568 Tilt angle *
Motor capacity 11.0kw Power supply 3ph 220V/380V 50/60Hz
Required steam pressure 7.0 kg/cm2 Distributed electricity 8.0mm2/5.5mm2
Compressed air 7.0 kg/cm2 Maximum current 33A/23A
Water supply 1,732L Breaker 50A/40A
Essential water pressure 1.0~2.8kg/cm2 Dimension 2060Wx2000Dx2205H
    Net weight 3,115kg
