Solvent Dryer Series

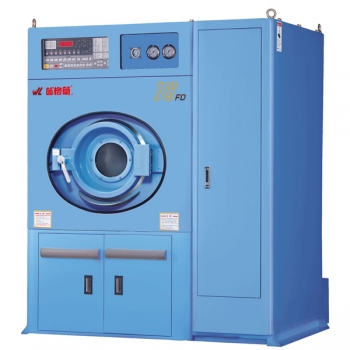

WEI-18FD
 |
Washing,dehydration and rotation can be set as desired to suit the types of clothes. |
|
Temperature sensing device. |
|
Oil level display. |
|
Soft washing,automatic soaking and subscription functions. |
|
Specially designed oil reservoir in base increases washing convenience. |
|
Advanced inner filter constructure makes clothes more clean. |
| Mode WEI-18FD | |||||
| Loading(kg) | 18kg | Motor capacity | 3.7kw | ||
| Drum | Diameter(mm) | 800mm | Oil exhaust compressor | 0.75kw | |
| Depth(mm) | 450mm | Pipe diameters | Oil intake | 1〞 | |
| Capacity(Liter) | 226L | Oil drainage | 3〞 | ||
| R.P.M | Wash (rpm) | 20.35.40.45.50 rpm | Exhaust pipe | 2〞 | |
| Distribution(rpm) | 62rpm | Caliber of exhaust oil | 1〞 | ||
| Extract | 150.420.590.720.830 rpm | Power supply | 3ph 220V/380V 50/60Hz | ||
| Oil tank capacity | 500L | Distributed electricity | 5.5mm2/3.5mm2 | ||
| Filter 1 | Internal pressure non-woven×2 | Maximum current | 17A / 11A | ||
| Filter 2 | Active carbon*1(5Lx6) | Breaker | 30A / 30A | ||
| Door dimension | ø415mm | Dimension | 1690Wx1455Dx1905H | ||
| Controlled by | WL-568 | Net weight | 1,250kg | ||
