Clearly identified LED control panel provides setting of 15 drying strikes, allowing for accurate management of drying operation.
With using advanced technology heater and unique designed blower, this machine has high efficient drying capability.
The inverter controls blower's start and speed and automatic-checking intelligent blower rotation control system, when air exhausting has backpressure in checking, the rotation speed of blower would be automatic revised, won’t be controlled by air exhausting backpressure to influence the drying.
Easily clean side cotton screen, big door diameter,clean easily. （can be drawn out from the rear side for clean)
12.7mm square holes, the opening percentage of the internal barrel reaches 64%, increasing ventilation efficiency, higher drying speed.
Advection hot air design, let more hot air blow the linen, do not waste the hot air, effecting the drying time shortest.
6 agitating rods have a good agitating result, reduce bed sheet tangling or the rubs between bed sheet and internal barrel that lower the cotton wool and extend the linen lives.
1425mm large internal barrel permits linen fully unfolding for drying, with using rotation control of drum, preventing linen from unevenly drying or tangling.
Unique drum operation control, preventing linen from crushing or tangling. If the bath towel has much water, the rotating speed will be low; if there is little water, the rotating speed will be fast. Half-drying bed sheet, quilt cover etc., the clockwise rotation is slow,counterclockwise rotation is fast.
Can with output convey belt, save carrying time, improve working efficiency.
Utility model patent：ZL201020626033.4 ZL201130329691.7 M407377

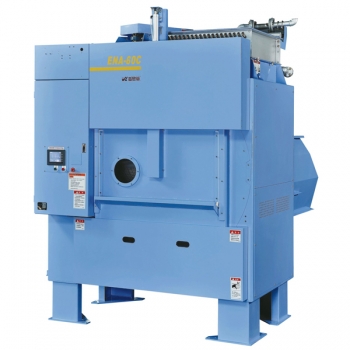

Mode ENA-60C
Loading(kg)
60kg
Total capacity
5.2kw
Distill speed
148kg/hr
Pipe
Steam
1 1/2〞
Steam consumption
284kg/hr
Cooling water
3/4〞
Drum
Diameter(mm)
1,425mm
Air
3/8〞
Depth(mm)
1,100mm
Required steam pressure
7.0 kg/cm2
Capacity(Liter)
1,753L
Air consumption
25NL /Time
R.P.M
clockwise 29rpm
counterclockwise 41rpm
Duct pipe
ø400mm or 1,400cm2
Punch hole
12.7mm square
Power supply
3ph 220V/380V 50/60Hz
Air flow
140m3/min
Distributed electricity
5.5mm2/3.5mm2
Door dimension
Front
1,100x500mm
Maximum current
22A/12.5A
Rear
ø1,337mm
Breaker
50A/30A
Controlled by
Touch Panel
Dimension
(Height size including 350mm shelves height)
