Clearly identified LED control panel provides setting of 15 drying strikes, allowing for accurate management of drying operation.
With using advanced technology heater and unique designed blower, allowing for accurate mangement of drying operation.
The inverter controls blower's starting and speed and automatic-checking intelligent blower rotation control system, when air exhausting has backpressure in checking, the rotation speed of blower would be automatic revised, won’t be controlled by air exhausting backpressure to influence the drying.
Easily clean side cotton screen, big door diameter,clean easily.（can be drawn out from the rear side for clean)
12.7mm square holes, the opening percentage of the internal barrel reaches 64%, increasing ventilation efficiency, higher drying speed.
Advection hot air design, let more hot air blow the linen, do not waste the hot air, effecting the drying time shortest.
6 agitating rods have a good agitating result, reduce bed sheet tangling or the rubs between bed sheet and internal barrel that lower the cotton wool and extend the linen lives.
1425mm large internal barrel permits linen fully unfolding for drying, with using rotation control of drum, preventing linen from unevenly drying or tangling.
Unique drum operation control, preventing linen from crushing or tangling. If the bath towel has much water, the rotating speed will be low; if there is little water, the rotating speed will be fast. Half-drying bed sheet, quilt cover etc., the clockwise rotation is slow,counterclockwise rotation is fast.
Can with output convey belt, save carrying time, improve working efficiency.
Utility model patent：ZL201020139193.6 ZL201130096991.5 M383584

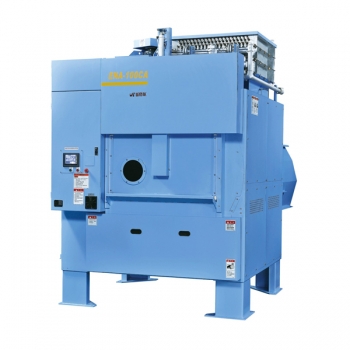

Mode ENA-100CA
Loading(kg)
100kg
Total capacity
9.7kw
Distill speed
220kg/hr
Pipe
Steam
2〞
Steam consumption
400kg/hr
Cooling water
1 1/2〞
Drum
Diameter(mm)
1,425mm
Air
3/8〞
Depth(mm)
1,708mm
Required steam pressure
7.0 kg/cm2
Capacity(Liter)
2,722L
Air consumption
35NL /Time
R.P.M
clockwise 29rpm
counterclockwise 41rpm
Duct pipe
ø600mm or 3,000cm2
Punch hole
12.7mm square
Power supply
3ph 220V/380V 50/60Hz
Air flow
200m3/min
Distributed electricity
14mm2/8mm2
Door dimension
Front
1,100x500mm
Maximum current
36A/22A
Rear
ø1,337mm
Breaker
75A/50A
Controlled by
Touch Panel
Dimension
Height size including 350mm shelves height
